//卷装柔性扁平电缆：Bulk FFC

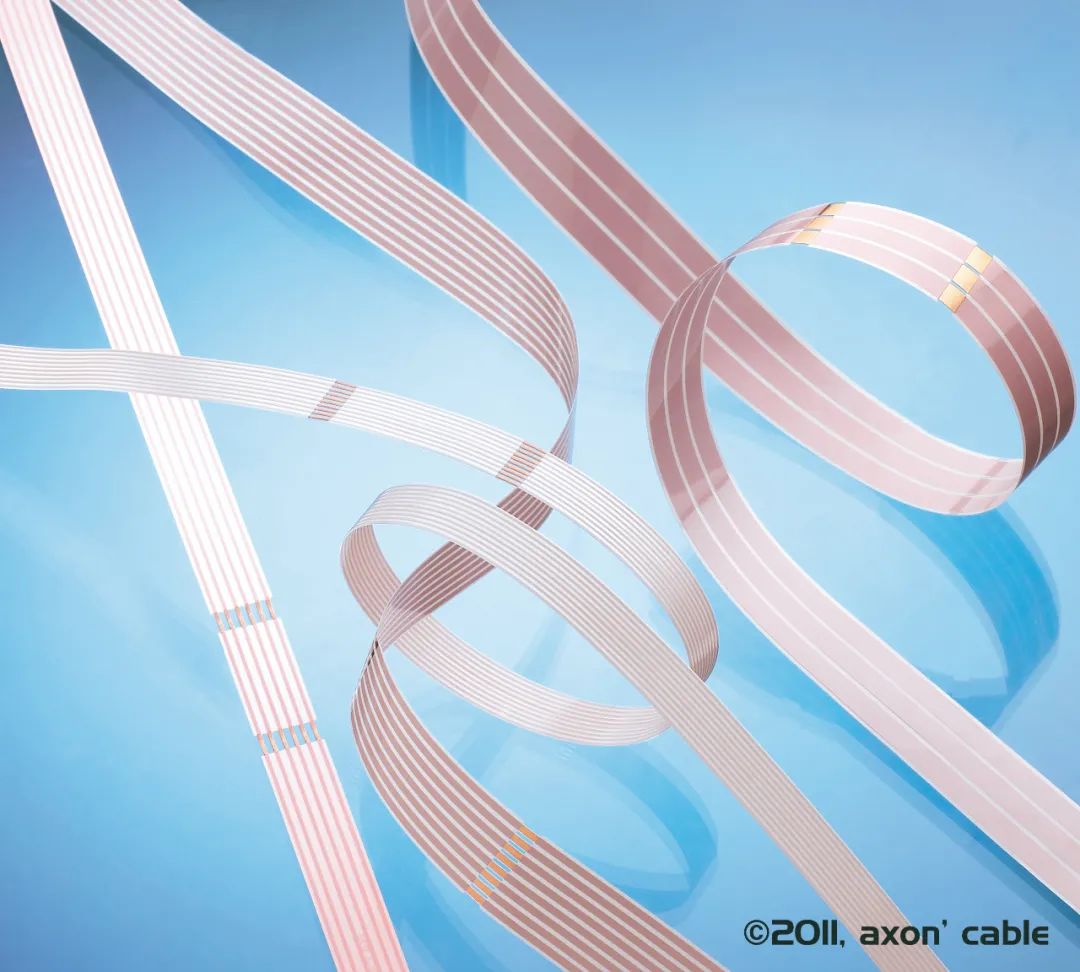

Bulk flat flexible cables: Bulk FFC
Flexlink®通常采用裸铜或者镀锡导体，聚酯或聚酰亚胺作为绝缘材料。主要应用于对线束柔性要求较高，以及需要节省空间的相关领域。例如计算机和打印机等电子产品，或者一些特殊设备中的板对板连接。卷装柔性扁平电缆也可用于airbag®�？橹锌匦悠鞯牟枷�。Flexlink®系列的标准扁平电缆有1.27mm和2.54mm的间距，可与最常用的压接端子兼容。作为柔性扁平电缆的专家，Axon'可以为您提供从0.30mm到1.25mm间距的定制设计解决方案。

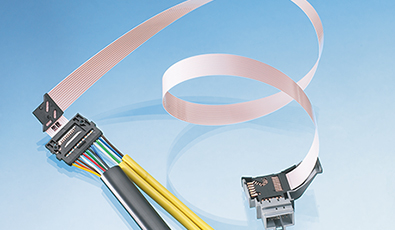

Bulk flat flexible cables Flexlink® are bare copper or tin plated copper conductors insulated with polyester or polyimide tapes. They are supplied on the reel for any application where flexibility and space reduction are required. Bulk FFC can be installed in printers and computers for the consumer electronics, used for special machines or for board-to-board connection. Bulk flexible flat cables can also be used for the cabling of switch rotary connectors in airbag® modules. Available in 1.27 mm and 2.54 mm pitches, standard flat cables of the Flexlink® range are compatible with the most commonly used crimp contact. As a specialist in flat flex cables, Axon' can offer you custom designed solutions from 0.30 mm to 1.25mm pitch.
//优势
Advantages
-高柔韧性
-节省空间
-卷轴供应：可根据客定长度裁切
-与大多数压接端子兼容
-额定温度：-40°C至105°C
-Very flexible cables.
-Space saving cabling.
-Supplied on the reel: bulk flat flex cables can be cut to length to your needs.

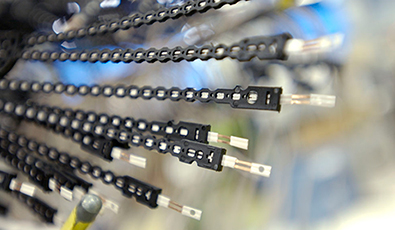

-Compatible with most of the crimp contacts.
-Temperature rating: -40°C to 105°C.
//结构
Construction
-导体：裸铜、镀锡铜
-根据用户要求极化第一芯导体，便于识别
-间距：0.30mm到1.25mm
-绝缘材料：聚酯、聚酰亚胺（仅用于裸铜）
-标准包装：150m每卷
-Bare copper conductors or tin plated copper.

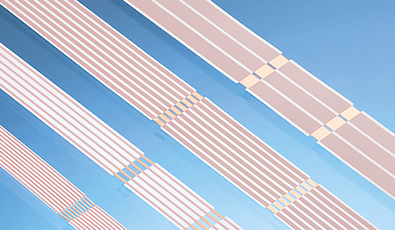

-1st conductor for the polarization on request.
-Pitches: From 0.30 mm to 1.25 mm pitches.
-Insulation material: polyester, polyimide(with bare coppers only).
-Standard packaging: 150 m reels.
//应用
Applications
消费类电子产品：电脑、打印机
汽车：开关旋转连接器，门板，顶篷
机器设备
Consumer electronics: computers, printers.
Automotive: switch rotary connectors, door panels, headliners.
Machines
